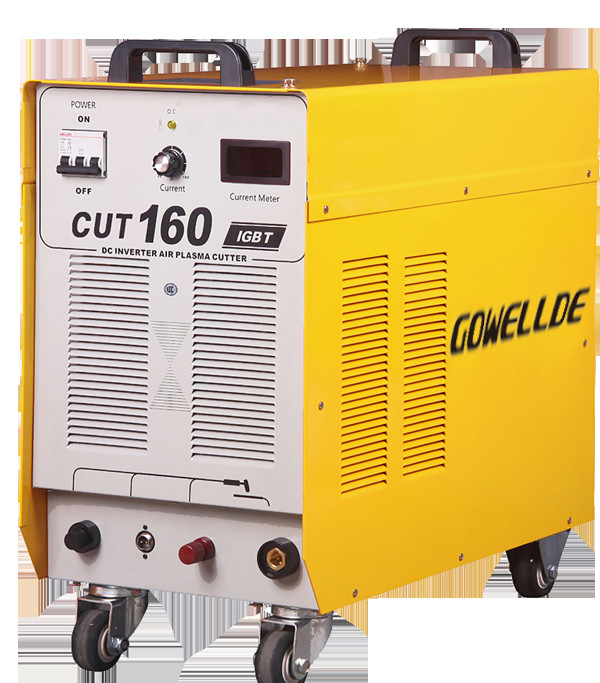

CUT160I IGBT MODULE INDUSTRIAL 160AMPS PLASMA CUTTER
商品の詳細
製品の説明
Max cutting thickness 60 mm
Suitable for CNC cutting
Features:
1.With digital control port, can provide special signal for CNC such as 1:1 arc voltage, successful arc strike judgment etc.
2.Pioneer of new arc maintenance technology, with high-frequency ignition at millisecond level and very less high-frequency interference.
3.Preset current function, can preset accurate cutting current with infinite adjusting way to cut different thickness plate.
4.Better external and dynamic characteristic than transformer type cutting machine, with excellent performance like high successful rates of arc striking, good arc stiffness, smooth cut.
5.Current rising slowly when arc starting, effectively extend the life of electrode and nozzle.
6.Very stable cutting current, it doesn't influence the cutting current when voltage fluctuates within 10%.
7.High duty cycle, no stop at max cutting current.
8.With non-contact arc striking, excellent instant arc strike function.
9.Arc is strong. It can cut the metal which has rust and paint conveniently.
10.Less pollution, more economy, effectiveness than flame cutting machine.
11.Over-current, over-heat, and overload protection system, make sure the equipment works reliable.
Specification:
| Type | LGK-160I | |
| control mode | IGBT inverter | |
| Rated input voltage | AC380V | |
| Rated input current(A) | 40 | |
| Rated input capacity(KVA) | 26.3 | |
| Rated output current(A) | 160 | |
| Cable cross-sectional area | mains input(mm2) | 8 |
| power output(mm2) | 25 | |
| ground wire(mm2) | 4 | |
| Rated output voltage(V) | 144 | |
| Duty cycle(%) | 100 | |
| Rated no-load voltage(V) | 315 | |
| Current adjustment range(A) | 40-160 | |
| Quality cutting thickness (carbon steel)(mm) | 1~35 | |
| Maximum cutting thickness (carbon steel)(mm) | 55 | |
| Using plasma gas | Compressed air | |
| Gas pressure range(MPa) | 0.4-0.6 | |
| Applicable air compressor capacity(m3) | ≥0.6 | |
| Arc ignition mode | High pressure non-contact | |
| Enclosure rating | IP21S | |
| Insulation rating | F | |
| Cooling method | Air | |
| Power factor | 0.93 | |
| Dimensions(mm) | 820*390*940 | |
| Host weight(KG) | 70 | |
